SMC MBX 850

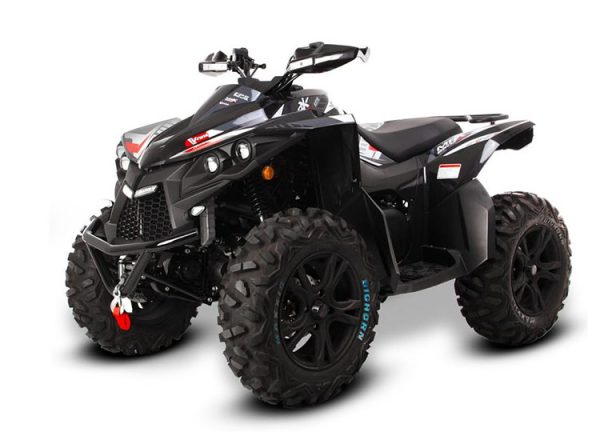

The MBX 850 is one of very few Sport Utility Vehicles that have been designed from the ground up with performance, handling and rider exhilaration at the forefront of the designers minds.
In Action
FEATURES SPOTLIGHT
Powerful
Powered by a new generation V-Twin engine, the MBX produces more lb/ft torque than almost all other competitors in its power category.
Conquer Any Terrain
Fitted with large 14″ wheels with large Maxxis off road tyres. This quad is equally adept on the road or off the road. Making it an ATV is ideal for any agricultural situation.
Beauty and Utility

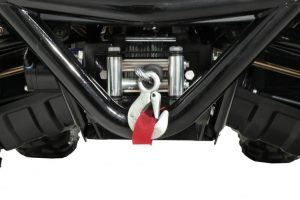

Fitted with a tow bar and winch allowing this quad to be used for all sorts of tasks; without sacrificing beauty
Euro 4 Spec
When on-road the rear differential system on this EURO4 spec machine makes cornering and handling smooth and predictable.
Full Specification
| Capacity | 818cc |
| Clutch | Automatic – CVT |
| Cooling | Liquid Cooled |
| Cooling | Oil Cooled |
| Dimensions L / W / H | 2100 x 1230 x 1260 mm |
| Drive Type | 2/4 Wheel Drive Selectable |
| Electric Power Steering | Yes |
| Engine Type | 4-Stroke V-Twin |
| Euro 4 | Yes |
| Final Drive | Shaft |
| Front Brakes | Disc |
| Front Shock Absorbers | Preload Adjustable Hydraulic |
| Front Suspension | Dual A-arm |
| Front Tyre Size | AT26 x 8-14 |
| Front Wheel Size | 14″ |
| Fuel System | EFI – Electronic Fuel Injection |
| Fuel Tank Capacity | 23.5 Litres |
| Gearbox | Automatic Gears |
| Gross Weight | 355 KG |
| Max Power | 77HP (OFF ROAD) |
| Max Torque | 84 NM |
| Rear Brakes | Disc |
| Rear Shock Absorbers | Preload Adjustable Hydraulic |
| Rear Suspension | Independant Double A Arm |
| Rear Tyre Size | AT26 x 10-14 |
| Rear Wheel Size | 14″ |
| Seat Height | 910 mm |
| Start Type | Electric Start |
| Throttle Type | Thumb Throttle |
| Tyre Brand | Maxxis |
| Warranty | 2 Years |
| Wheel Size | 14 Inch |
| Wheel Type | Aluminium |
| Winch | Yes |
